PRODUCT UMESH

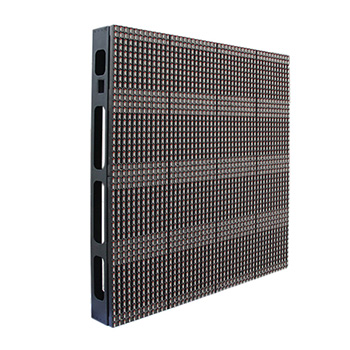

UMESH

Building Digital Signage

UMESH는 통풍구조의 초경량 디스플레이 제품으로 Store Sign, Window Sign,
Street Sign, Building scene lighting등 다양한 분야에서 적용되는 획기적인 광고매체 입니다.

Stability Windproof Transparent Energy-saving

Application

[Store sign]

[Window sign]

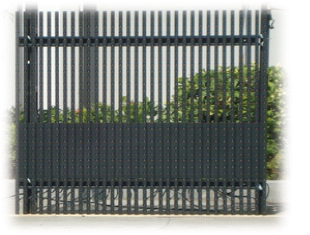

[Street sign]

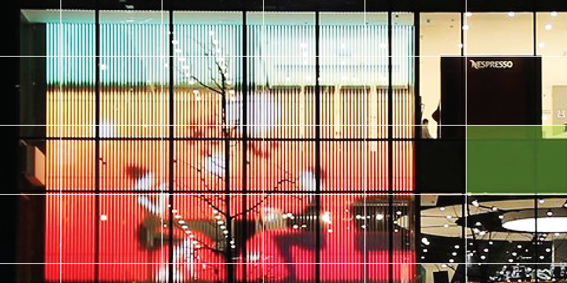

[Building scene lighting]

Specifications

SPECIFICATIONS	Umesh10	Umesh16	Umesh20	Umesh25	Umesh50
Pixel Pitch(mm)	10	16.67	20	25	50
Brightness Adjustable(nits)	7000	7000	7000	6500	6000
LED Encapsulation	DIP346	DIP346	DIP346	DIP346	DIP346
Optimum Viewing Angle	H:110° V:50°	H:110° V:50°	H:110° V:50°	H:110° V:50°	H:110° V:50°
Panel Size(mm)	1200 x 1200	1200 x 1200	1200 x 1200	1200 x 1200	1600 x 800
Panel Resolution(pixels)	120 x 120	72 x 72	60 x 60	48 x 48	32 x 36
Panel Weight(kg)	42	41.5	41	41	52
Power Consumption (Max/Ave((W/sqm)	411 / 136	411 / 136	411 / 136	384 / 127	281 / 94
Refresh Rate(Hz)	≥1000	≥1000	≥1000	≥1000	≥4000
Gray Level(bit)	≥14	≥14	≥14	≥14	≥16
IP Rating	65 / 54	65 / 54	65 / 43	65 / 43	65 / 54
OperatingTemperature/Humidity	-20~+50/10~90%
