UTV

High definition Video Wall

UTV는 초고해상도의 Video Wall TV로
벽의 일부 혹은 전체를 이용해서 이미지 정보 혹은 예술적인 표현을 전달하는 매체이며,
공간인테리어도 활용되는 복합적인 LED Display시설물입니다.

High Refresh Rate - 3200Hz

  Super high fidelity under 1/3200 second shutter

High Contrast Ratio - 5000:1

  Perfect image performance

High Gray Scale - 16bit

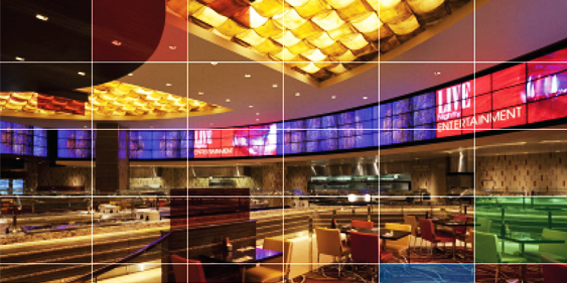

Application

Specifications

SPECIFICATIONS	UTV0.8	UTV1.0	UTV1.4	UTV1.6	UTV1.9	UTV2.5	UTV3.0
Pixel Pitch(mm)	0.8	1.0	1.4	1.6	1.9	2.5	3.0
Brightness Adjustable(nits)	600	600	800	800	800	800 / 1200	600 / 800 & 800UTV3.0
LED Encapsulation	SMD0606	SMD0606	SMD1010	SMD1010	SMD1010 & 1515	SMD1010 & 2121	SMD2121
Optimum Viewing Angle	H:160° V:160°	H:160° V:160°	H:160° V:160°	H:160° V:160°	H:160° V:160°	H:140° v:120°	H:140° v:120°
Panel Size(mm)	480 x 480
Panel Resolution(pixels)	540 x 540	480 x 480	384 x 384	288 x 288	252 x 252	192 x 192	384 x 384
Panel Weight(kg)	11	11	11	8.95	11	11.5	10.5
Input PowerW/panel	140W/panel	140W/panel	168W/panel	168W/panel	175W/panel	120W/panel	150W/panel
Refresh Rate(Hz)	≥1920	≥1920	≥1920	≥1920	≥2880	≥2880	≥2880
Gray Level(bit)	16
IP Rating(bit)	40	30	30	30	30	30	30
OperatingTemperature/Humidity	0~+45/10~90%

UTV Detail
